Main Wind Force Resisting System

While wind load calculations can be difficult to figure out because the wind is unpredictable some standard calculations can give you a good idea of what a building can withstand. Main Wind Force Resisting System MWFRS. The pressure coeffi cients for MWFRS are basically separated into two categories. Main Wind Force Resisting System and Components and Cladding. Main Wind-Force Resisting System MWFRS Wind loads for MWFRS shall be determined using one of the following procedures. Cp is the external pressure coefficient from Figures 274-1 274-2 and 274-3 of. From 0 to 100 feet 0 to 30 480 mm elevation 20 psf 096 kNm 2.

Width Width of Building 35000 ft 10668 m.

Main Wind Force Resisting System and Components and Cladding. Typically members which receive loading from two. Main Wind-Force Resisting Systems MWFRS. 2 Select appropriate building enclosure classification from open building partially enclosed building and enclosed building classifications. Design Wind Pressures 2. Examples of components include fasteners purlins girts studs roof decking and roof trusses.

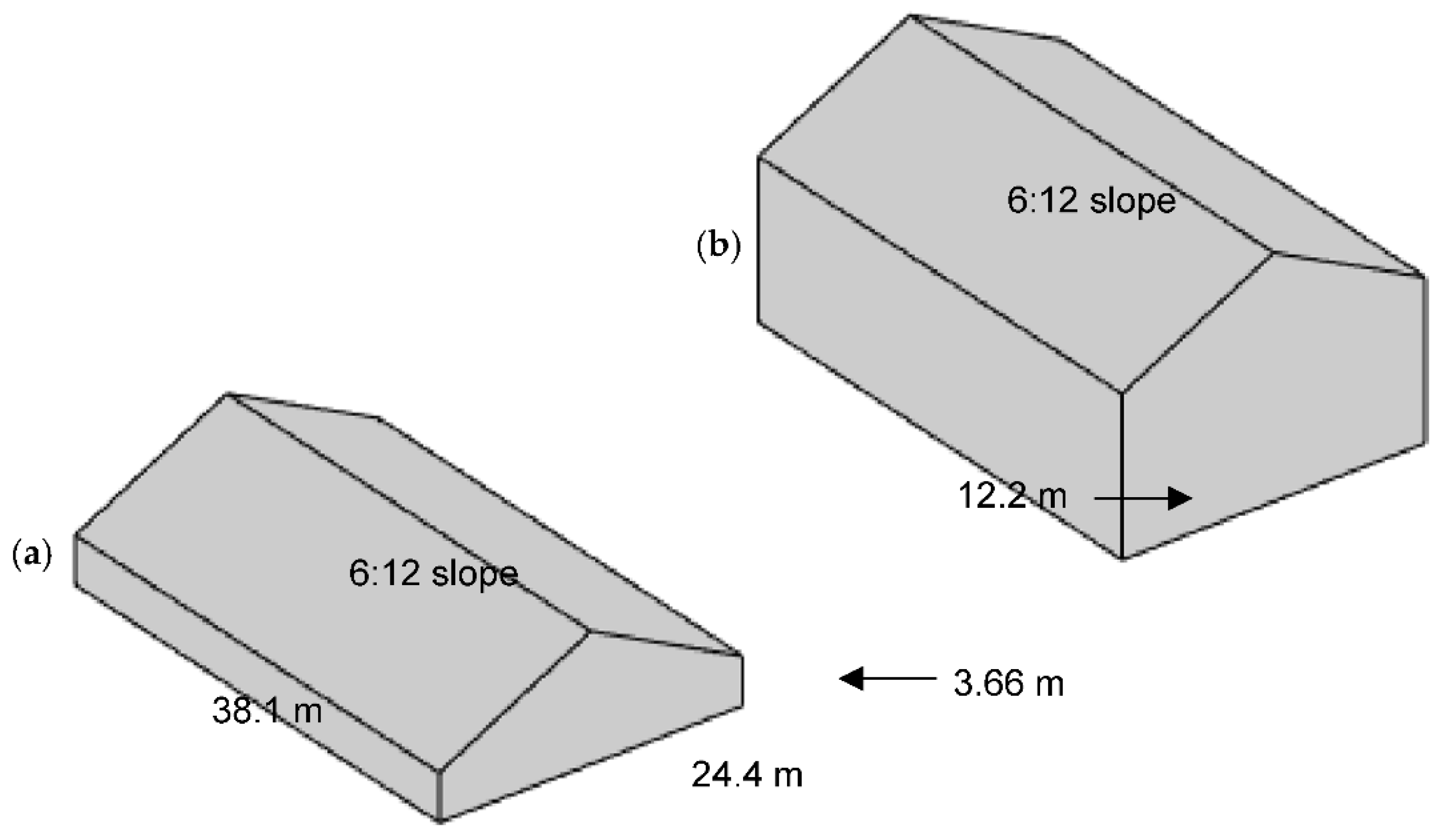

Geometry And Main Wind Force Resisting System Mwfrs Of Low Building Download Scientific Diagram

Main wind force resisting system. WIND LOADING ANALYSIS - Main Wind-Force Resisting System Per ASCE 7-98 Code for Low-Rise Buildings with h. Wind loads for the design of the main wind-force resisting system are illustrated and specified in the following figures tables and formulas. Components receive wind loads either directly or from the cladding and then transfer the loads to the main wind force resisting system.

Main Wind Force Resisting Systems is defined in ASCE 7. Loads on Main Wind-Force Resisting Systems. Cedures for the wind design and performance-based procedures for the seismic design of indi-vidual buildings.

286 WIND LOADSMAIN WIND-FORCE RESISTING SYSTEM 2861 Scope A building whose design wind loads are deter-mined in accordance with this section shall meet all the conditions of Section 2862. Main Wind-Force Resisting System MWFRS Wind loads for MWFRS shall be determined using one of the following procedures. 3 Determine the basic wind design speed from the mapped values within ASCE 7-16.

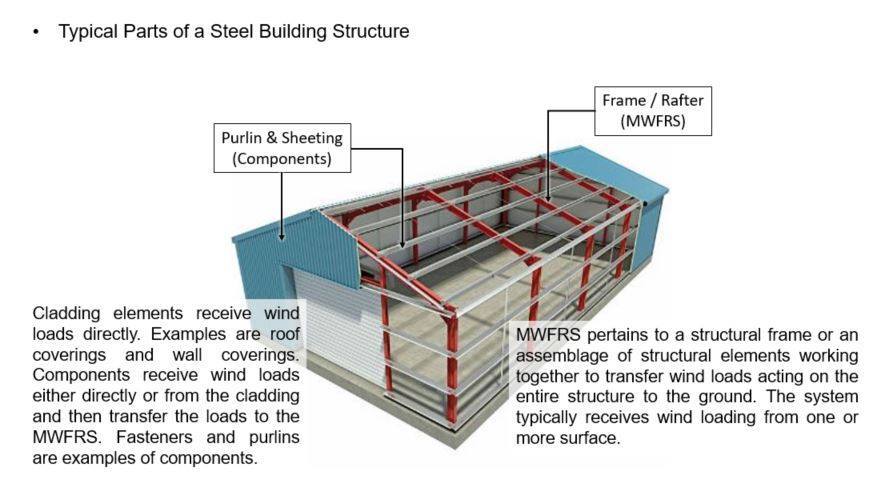

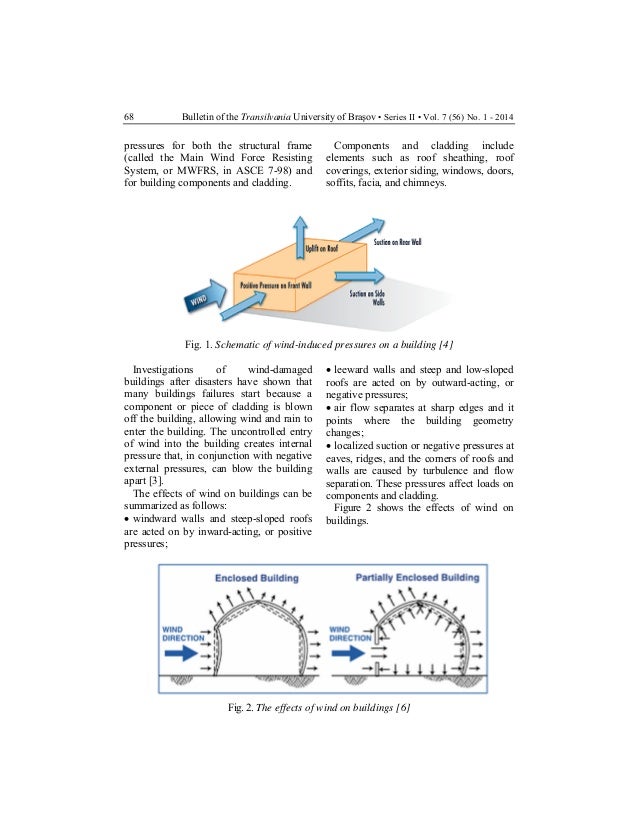

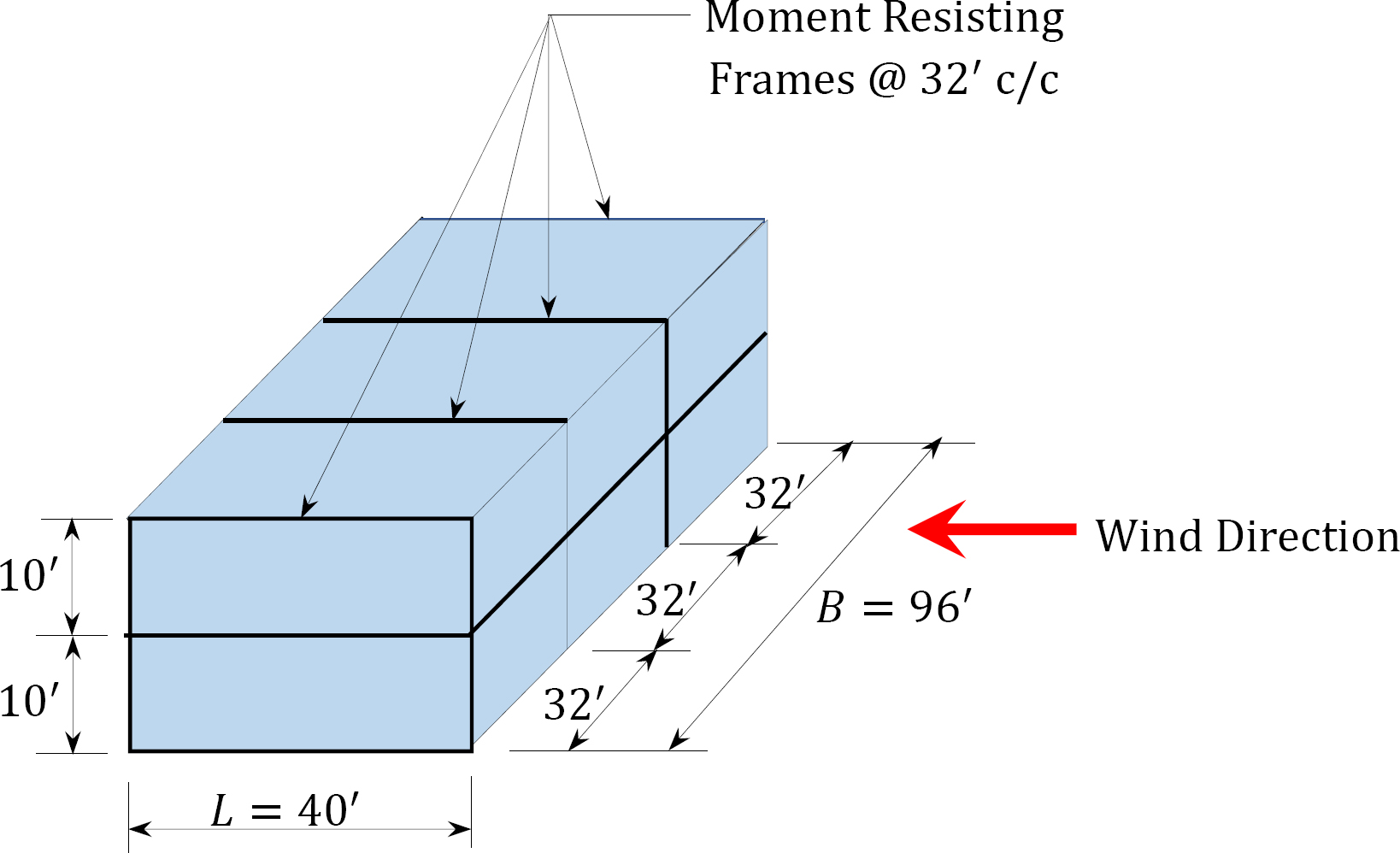

The pressure coeffi cients for MWFRS are basically separated into two categories. MWFRS pertains to a structural frame or an assemblage of structural elements working together to transfer wind loads acting on the entire structure to the ground. In general you need to address both because the larger the item the smaller the.

The system generally receives wind loading from more than one surface. The main wind force resisting system of a building is a vital component. GCpi is the internal.

Kz is velocity pressure exposure coefficient. C and C are the individual pieces like girts purlins doors etc. Main Wind Force Resisting System MWFRS One of the three methods outlined by ASCE 7 for calculating wind pressures.

Main Wind Force Resisting System MWFRS Components and Cladding CC and Other Structures and Building Appurtenances. While wind load calculations can be difficult to figure out because the wind is unpredictable some standard calculations can give you a good idea of what a building can withstand.
